EE 230 Electronic Circuits & Systems G. Tuttle

Non-linear oscillator practice problems
Refresh the page to get a new problem.

Read the Non-linear oscillator class notes.

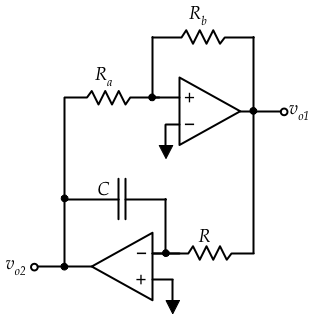

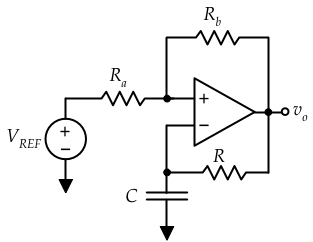

For the non-linear oscillator circuit shown,

  • Ra = 2.7 kΩ
  • Rb = 4.7 kΩ
  • R = 1 kΩ
  • C = 1 μF

The op-amp output saturation levels are
VL+ = 10 V and VL- = -10 V.

The reference voltage is
VREF = 4 V.

For the base comparator, what are VTL and VTH? For the oscillator, what is the oscillation frequency?

Answers
